Zhangjiagang Jiayuan ماشین آلات CO.، LTD
تولید کننده حرفه ای مایع آشامیدنی و بسته بندی ماشین آلات
 |
| Place of Origin: | China（mainland） |
| نام تجاری: | JIAYUAN |
| گواهی: | CE SGS |
| Model Number: | CGF18-18-6 |
| Minimum Order Quantity: | 1 set |
|---|---|
| قیمت: | pls inquiry |
| Packaging Details: | standard wooden cases |
| Delivery Time: | 35 working days |
| Supply Ability: | 99 sets per year |
| product name: | water bottling machine | Model: | CGF18-18-6 |
|---|---|---|---|
| Suitable bottle: | PET plastic bottle | filling material: | mineral water, purified water, drinking water |
| capacity: | 5000-6000B/H | warranty: | 1 year |
| برجسته: | ,,water bottling equipment |
||
250-2000ml Water Bottling Equipment,Drinking Water
Production Plant
Parameter
| Model | CGF18-18-6 |
| Max capacity | 6000bph (500ml PET bottle) |
| Bottle size | 250-2000ml |
| Bottle Height | 150-320mm |
| Bottle Diameter | 40-108mm |
| Suitable cap | Plastic screw cap |
| Cap size | 28-38mm |
| Filling Tenperature | ambient |
| Filling Technology | gravity filling |
| Applications | purified water and mineral water |
| Power supply | 380V 50Hz 3Phases or customized |
| Total power | 5.03KW |
| Dimension | 2450*1800*2300mm |
| Weight | 4000kg |
Description
This machine is our most popular model, it is a rising filling caping monoblock,
has 18 rising heads 18 filling heads and 6 capping heads, can produce water
5000-6000 bottles per hour, suitable for producing non-carbonated beverage,
like mineral water, purified water, sring water, vitamin water, juice, tea and other
non-gas liquid.
Details

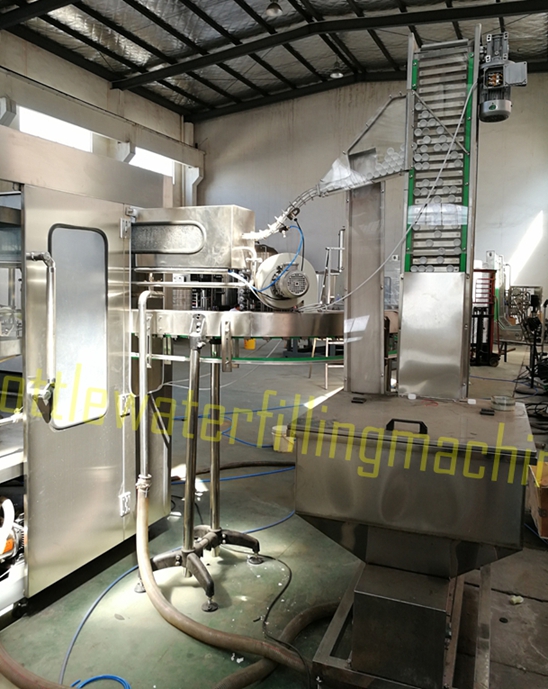

cap elevator

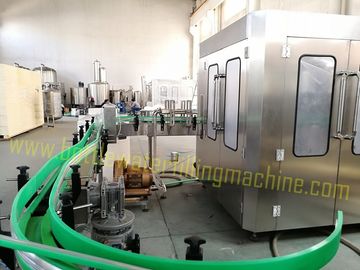

overall look
Besides this CGF18-18-6, we also have other capacity
| Model | CGFB16-16-12-6 | CGFB18-18-18-6 | CGFB24-24-24-8 | CGFB32-32-32-10 | CGFB40-40-40-12 | CGFB50-50-50-15 |
| Number of sterilizing heads | 16 | 18 | 24 | 32 | 40 | 50 |
| Number of rising heads | 16 | 18 | 24 | 32 | 40 | 50 |
| Number of filling heads | 12 | 18 | 24 | 32 | 40 | 50 |
| Number of capping heads | 6 | 6 | 8 | 10 | 12 | 15 |
| production capacity(500ml) | 4000BPH | 6000BPH | 10000BPH | 12000BPH | 20000BPH | 24000BPH |
| Bottle standard(mm) |
Diameter:Φ50-Φ108 Height:150-320 |
|||||
| Installed capacity(KW) | 3.8 | 4.3 | 6.5 | 8.7 | 9.5 | 12 |
| Overall size L*W*H(mm) | 3050*2000*2400 | 3170*2070*2400 | 4070*2350*2400 | 5100*2600*2400 | 6250*3050*2400 | 7500*3900*2400 |
If you want to get your precise quotation, pls leave your capacity, thanks... ...
