5 Gallon Water Filling Machine , 600BPH Juice Bottling Line
Quick Detail:
QGF-600 drinking water bottling line
Description:
QGF-600 drinking water bottling line
1. 3-rows 12-washing stops. Everything stop is about 23 seconds
2. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
3. Water pump: 304 stainless steel pump. Three washing pumps and one filling pumps.
4. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
5. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
6. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows
Applications:
This production line can fill mineral water, carbonated drinking, juice and so on. Fit for office and home water dispenser.
Specification
1. Technical parameter
2. Technical parameter
Model |
QGF-600 |
Filling head |
3 |
Filling volume (L) |
18.9 |
Bottle specification (mm) |
270*490 |
Capacity |
600 |
Air pressure (MPa) |
0.6 |
Air consumption (m3/min) |
1 |
Power (kW) |
3.8 |
Rated voltage (V) |
380V/50HZ |
Dimensions (L*W*H) (mm) |
4800*1800*1600 |
Weight (kg) |
2000 |

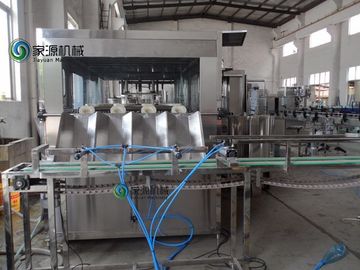

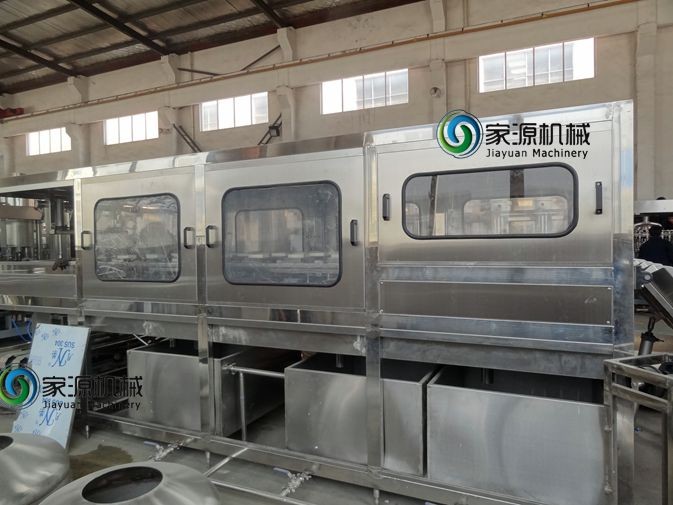

3. Pictures
Competitive Advantage:
1).It is ideal equipment for producing mineral water, super-pure water, space water and distilled water.
2).Advanced PLC control system (famous brand)
3).The key parts are imported and their quality is reliable.
4).The whole machine is made of stainless steel (304/316)
5).Its structure is reasonable and its operation is convenient.
6).Easy cleaning and corrosion.
